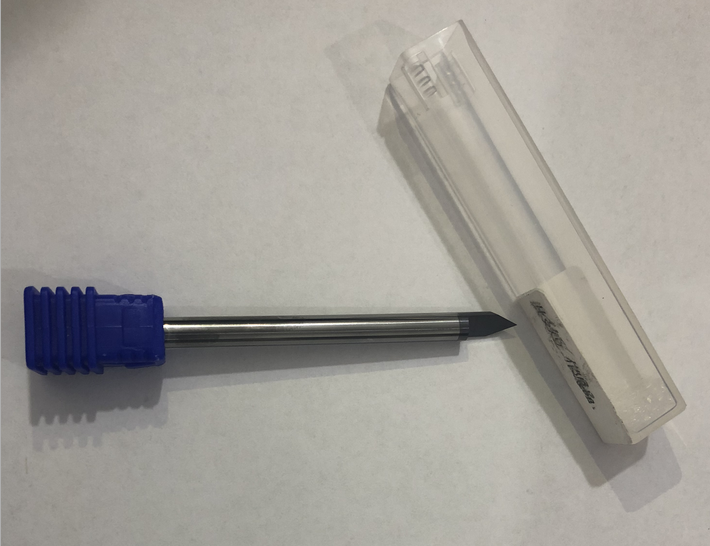

Raw materials are international famous brand tungsten carbide rods
and steel bars, which will be long tool life and high hardness and
high wear resistance and high strength and anti-bending.
Special sizes can be customized.
| material | Tungsten carbide |
| workpiece | suitable for Acrylic, ABS,PVC, MDF, high-density board, lotus
board, Solid wood, wood, plastic plate, double color sheet, etc |
| Shank dia | Cutting dia | angles | Total length |
| 3.175 | 0.1 | 10°/15°/20°/25°/30°/40°/45°/60°/90° | 30 |
| 3.175 | 0.2 | 10°/15°/20°/25°/30°/40°/45°/60°/90° | 30 |
| 3.175 | 0.3 | 10°/15°/20°/25°/30°/40°/45°/60°/90° | 30 |
| 3.175 | 0.4 | 15°/20°/25°/30° | 30 |
| 3.175 | 0.5 | 10°/15°/20°/30° | 30 |
| 3.175 | 0.6 | 20°/30° | 30 |
| 3.175 | 0.8 | 20°/30° | 30 |
| 3.175 | 1 | 30° | 30 |
| 3.175 | 1.2 | 30° | 30 |
| 3.175 | 1.5 | 30° | 30 |
Super-hard processing of professional, special, non-standard,
special shaped and new products with any kind, any shape and
tolerance.
If you have any similar inquiry, please call us to get samples in
the photos and related catalogue for your reference (only a small
amount is allowed).
We keep around RMB 8~10 Million turnover stock articles such as raw material ,semi-
products, finished products in ordinary year , we are capable to produce according to drawing or sample provided
by customer, so as to present you a favorable cost-performance
ratio…Welcome to visit our factory.
we can produce super long-wide-thick,high precision,complex profiling products according to requirements of drawings &
samples.
(Super high wear-resistance /high impact-resistance/high precision)
Length L=5mm~6500mm series, Width B=2mm~800mm series, Thickness
T=0.10mm~120mm series,
Flatness can be
1. Machined work piece's minimum thickness is up to T= 0.20~0.06mm(and
its maximum thickness is up to more than 800mm)
2. Machined work pieces' minimum diameter is up to φD=φ0.006 ( and its
maximum diameter is up to more thanφ 600mm.)
3. Machined work pieces' maximum length is up to 6500mm (there is no
limit for minimum length)
4. Flatness, parallelism, precision tolerance can be up to 0.005mm
~0.002mm~0.001mm high.
5. Machined work piece's thickness tolerance is up to
T±0.002mm~±0.001mm~±0.0005mm.
6. Surface roughness can be up to 0.2μm~0.1μm~0.05μm~0.01μm high .
