1. ZCCCT Original raw micro grain material, high hardness and
T.R.S.
a, Co: 10%,Wc:90%
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45/55/60/65
d, Grain size: 0.4-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 4-20mm Length: 50-100mm
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 1-6 .
2.Other products: drills,reamer, tool holders, ER collet, boring cutters, carbide
inserts, cutter heads,etc.
3.

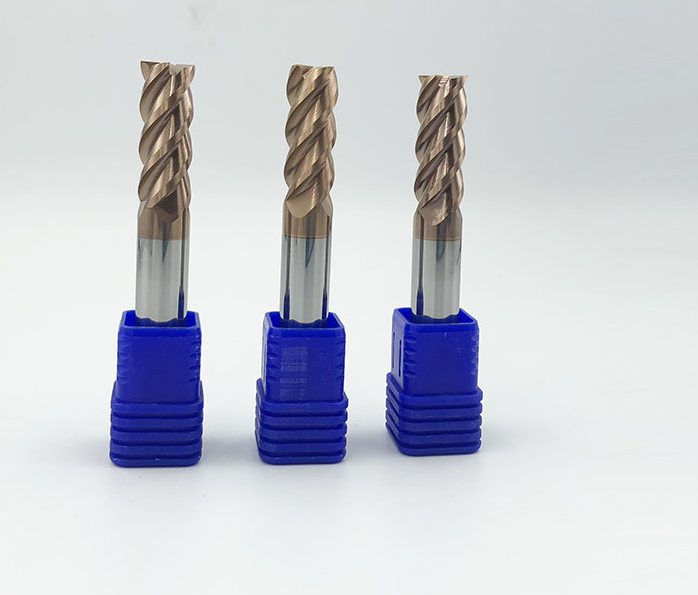

Main application of carbide end mill
- It is mainly used for CNC machining centers, cnc engraving machines
generally.
- It can also be fitted to some common hard milling equipment for
processing uncomplicated heat treatment Material
4. Super coating:
TiSiN TiAlN AlTiN TiCN or Blue Nano Coating,
| Item | AlTiN | TiAiN | TiSiN | nAcO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
improve tool life, reduce the coefficient of friction.
Our advantages:
1.Solid carbide lasting long life in hardened steels, Grain size
carbide, high toughness,high-wearing feature.
2.Non-standard can be customized according to customer's
requirements
3.We have produce ability to satisfy your orders,another
manufacturing bases will becompeleted in the near month
5.More than 20 years professional experience
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
Grain Size:0.7um
Co:10 %
Flexural strength: 3320N/mm2 | Grain Size:0.6um
Co:10 %
Flexural strength: 4000N/mm2 | Grain Size:0.5um
Co:12 %
Flexural strength: 4300N/mm2 | Grain Size:0.5um
Co:10 %
Flexural strength: 4300N/mm2 |
Super coating
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
