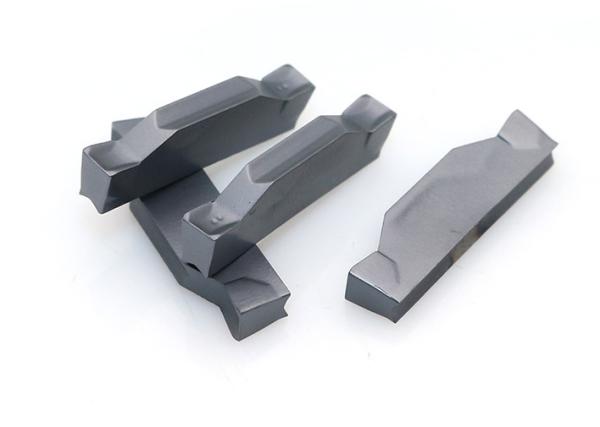

TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance

    Buy cheap TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance from wholesalers

    Buy cheap TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance from wholesalers
    • Buy cheap TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance from wholesalers

    TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance

    Ask Lasest Price
    Brand Name : SHIELD
    Model Number : TDC3
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000PCS per month
    Delivery Time : 5 days in stock, production need to be 30 days.
    • Product Details
    • Company Profile

    TDC3 Carbide Grooving Inserts , Parting Inserts Grooving Cutter Wear Resistance

    Carbide insert
    1.Carbide is more expensive per unit than other typical tool materials, and it is more brittle, making it susceptible to chipping and breaking.
    2.Most modern face mills use carbide inserts,as well as many lathe tools and endmills.In recent decades,though solid-carbide endmills have also become more commonly used,wherever the application's characteristics make the pros(such as shorter cycle times)outweigh the cons(mentioned above).

    The Key products we selling as below:
    --Carbide Inserts:turning inserts,threading inserts, milling inserts,grooving inserts..
    --Turning Tool:external turning,boring bar turning, threading turning...
    --End Mills: Carbide,, Rough End Mills, Round Tool Bits
    --Milling Tool:high feedrate face mill, round dowel face mill, end mill shank..
    --Drill bits:solid carbide step drills, twist drill, hss drill, indexable high speed drill
    --Hand Taps&Carbide saw blade
    --Rotating tool system:JT/BT/ST/HSK/DAT


    Features and benefits
    1.Up to 30% higher productivity and profitability.
    2.Coated suface enable to get longer tool life.
    3.Good abrasion resistance and toughness

    Technology:
    1.Incorporate latest molding, coating, edge preparation,and other manufacturing technology.
    2.Coatings provide highpeed capability and are engineered from finishing to hevy roughing,the ostcoat treatment reduces coating stresses,improves coating adhesion,and improves workpiece finish.
    3.Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steeland other non-metallic.

    GRADE TABLE

    GradeCoatedApplication
    YBC151CVDP05-P20, finishing of P-type material
    YBC152CVDP05-P20, finishing of P-type material
    YBC251CVDP10-P30, semi-finishing of P-type material
    YBC252CVDP10-P35, semi-finishing of P-type material
    YBC351CVDP20-P40, roughing of P-type material
    YBM151CVDM05-M30, finishing, semi-finishing and roughing of M-type material
    YBM153CVDBEST CHOICE for Roughing of M-type material
    YBM251CVDM10-M30, semi-finishing and roughing of M-type material
    YBM253CVDM10-M35, semi-finishing and roughing of M-type material
    YBD052CVDK05-K15, finishing of K-type material, esp. for high speed dry machining of gray cast iron
    YBD102CVDK05-K20, finishing of K-type material, esp. for high speed machining of Nodular cast iron
    YBD151CVDK05-K25, finishing of K-type material, semi-finishing of K-type material
    YBD152CVDK05-K25, finishing and semi-finishing of K-type material
    YBD252CVDK15-K35, semi-finishing and roughing of K-type material
    YBG102PVDK01-K10, S10-S20, finishing of K.S-type material
    YBG105PVDfinishing and semi-finishing for materials difficult to cut
    YBG202PVDP10-P30, M10-M30, K10-K20, S20-S30, semi-finishing of P, M, K-type material; Roughing of S-type material
    YBG205PVDM05-M30, semi-finishing and roughing of M-type material
    YBG302PVDP10-P40, M10-M30, K20-K40, S20-S30, semi-finishing and roughing of P.M.K.S-type material
    YNG151Uncoated CermetP05-P20, M05-M20, K05-K20, wide application in finish machining of P. M. K-type material
    YNG151CCoated CermetP01-P20, M01-M20, K01-K20, wide application in finish machining of P. M. K-type material
    YC10CementedP05-P20, finishing of P-type material
    YC40CementedP20-P40, rouging of P-type material
    YD051CementedK05-K15, finishing of K-type material
    YD101CementedN05-N30, S05-S15, finishing and semi-finishing of H-type material, finishing of S-type material
    YD201CementedK10-K35, semi-finishing and rouging of K-type material


    ADVANTAGES of SHIELD

    1) Professional and experienced for carbide inserts and cutting tools
    2) Top quality, with high precision and perfect working performance
    3) Better and better service with competitive price
    4) Quick delivery: 7 Days ( in stock)
    5) Full range of cutting tools, turning, milling, threading, parting&grooving, boring.....

    FAQ:


    Q1: Is your company a trading one or a factory?

    A1: Factory


    Q2: How do I pay for my purchase

    A2:Escrow, Credit card, Western union, Paypal, MoneyGram,T/T, are all accepted.


    Q3: How about the delivery?

    A3: 1-5 days if in stock, once you paid.

    Q4: Do you accept trial order?

    A4: Sure we can. Free samples are provided any time.


    Q5: Is the MOQ fixed?

    A5: For mass orders, the MOQ can't be less than production requirements of factory. For stock items, order quantity can be negotiable.


    Q6: Are customized products accepted?

    A6: We can design and produce according to your request.
