Description:
Inside the tool holder, there is a vibration absorbing device that
performs the opposite of a vibration generated by the bending
deformation of the tool holder, so it can absorb the vibration and
increase the stability.
The tool holders has excellent rigidity, good shock absorption, and
prolongs the processing depth. There is no fear of welding
fracture, and the variability of the cutter head is emphasized.
Application:
It is important for CNC and mechanical working industry.
Features of Turning Holder:
1.High percision.
Improve dimensional precision. To extend the processing depth,
enhance the accuracy of processing and to achieve long, ultra-deep,
ultra-high precision machining possibilities.
2. Reduce cost.
Extending the tool life. The holder can be reused even if the
cutter is damaged and easy and convenient to replace.The tip and
the holder are screwed and run in reverse direction to the
splindle.
3.High efficinecy.
No welding fracture concerns, emphasizing the variability of the
replaceable tool head, a carbide bar can reach dozens of
combinations, widely used in rough and precision processing
industrial.
Optional:

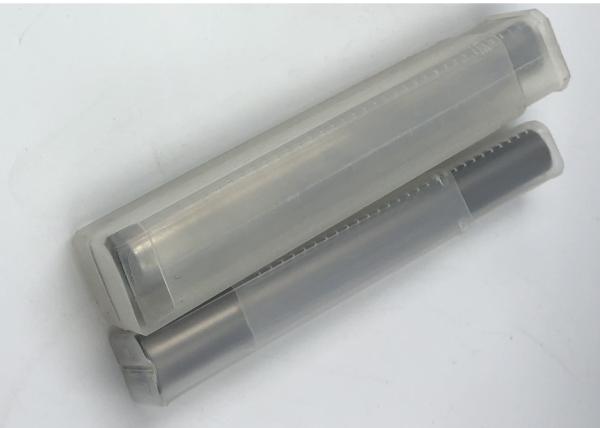

Customized Carbide Screwed Boring Bar
| Specification | D (mm) | D1 (mm) | L | L1 | M |
| MFT16-85-120-M8 | 16 | 15.6 | 120 | 85 | 8 |
| MFT16-95-150-M8 | 16 | 15.6 | 150 | 95 | 8 |
| MFT16-145-200-M8 | 16 | 15.6 | 200 | 145 | 8 |
| MFT20-40--100-M10 | 20 | 19.6 | 100 | 100 | 10 |
| MFT20-90-150-M10 | 20 | 19.6 | 150 | 150 | 10 |
| MFT20-140-200-M10 | 20 | 19.6 | 200 | 200 | 10 |
| MFT25-40-100-M12 | 25 | 24.6 | 100 | 100 | 12 |
| MFT25-85-150-M12 | 25 | 24.6 | 150 | 150 | 12 |
| MFT25-135-200-M12 | 25 | 24.6 | 200 | 200 | 12 |
BT-MFT Caebide Boring Bar
| Specification | L | L1 | L2 | D | d1 | M |
| BT30-MFT16-30-M8 | 130.4 | 65 | 30 | 15.6 | 8.5 | 8 |
| BT30-MFT16-60-M8 | 160.4 | 95 | 60 | 15.6 | 8.5 | 8 |
| BT30-MFT20-30-M10 | 130.4 | 65 | 30 | 19 | 10.5 | 10 |
| BT30-MFT20-60-M10 | 160.4 | 95 | 60 | 19 | 10.5 | 10 |
| BT30-MFT25-30-M12 | 130.4 | 65 | 30 | 24 | 12.5 | 12 |
| BT30-MFT25-60-M12 | 160.4 | 95 | 60 | 24 | 12.5 | 12 |
| BT30-MFT35-30-M16 | 130.4 | 65 | 30 | 31.8 | 17 | 16 |
| BT30-MFT35-60-M16 | 160.4 | 95 | 60 | 31.8 | 17 | 16 |
| BT40-MFT16-30-M8 | 130.4 | 65 | 30 | 15.6 | 8.5 | 8 |
| BT40-MFT16-60-M8 | 160.4 | 95 | 60 | 15.6 | 8.5 | 8 |
| BT40-MFT20-30-M10 | 130.4 | 65 | 30 | 19 | 10.5 | 10 |
| BT40-MFT20-60-M10 | 160.4 | 95 | 60 | 19 | 10.5 | 10 |
| BT40-MFT25-30-M12 | 130.4 | 65 | 30 | 24 | 12.5 | 12 |
| BT40-MFT25-60-M12 | 160.4 | 95 | 60 | 24 | 12.5 | 12 |
| BT40-MFT35-30-M16 | 130.4 | 65 | 30 | 31.8 | 17 | 16 |
| BT40-MFT35-60-M16 | 160.4 | 95 | 60 | 31.8 | 17 | 16 |
| BT50-MFT25-30-M12 | 130.4 | 65 | 30 | 24 | 12.5 | 12 |
| BT50-MFT25-60-M12 | 160.4 | 95 | 60 | 24 | 12.5 | 12 |
| BT50-MFT35-30-M16 | 130.4 | 65 | 30 | 31.8 | 17 | 16 |
| BT50-MFT35-60-M16 | 160.4 | 95 | 60 | 31.8 | 17 | 16 |
